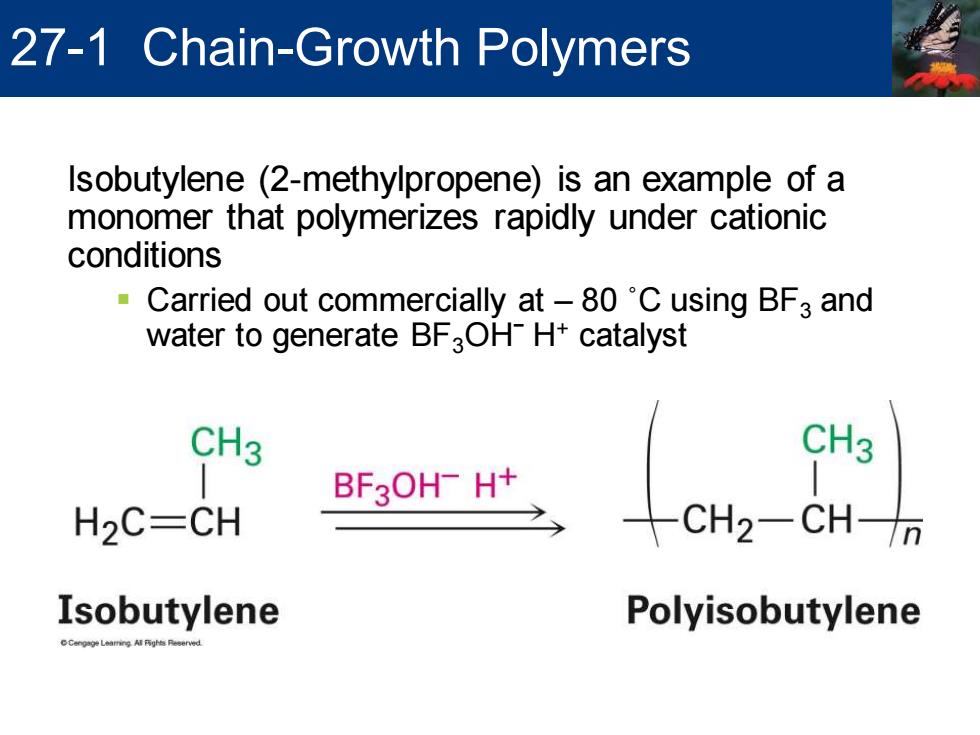

27-1 Chain-Growth Polymers Isobutylene (2-methylpropene)is an example of a monomer that polymerizes rapidly under cationic conditions Carried out commercially at-80'C using BF3 and water to generate BF3OH-H+catalyst CH3 CH3 BF3OH-H+ H2C=CH 十CH2-CH Isobutylene Polyisobutylene
Isobutylene (2-methylpropene) is an example of a monomer that polymerizes rapidly under cationic conditions ▪ Carried out commercially at ‒ 80 ˚C using BF3 and water to generate BF3OHˉ H+ catalyst 27-1 Chain-Growth Polymers
Anionic Polymerization Vinyl monomers with electron-withdrawing substituents (EWG)can be polymerized by anionic catalysts Chain-carrying step is nucleophilic addition of an anion to the unsaturated monomer by a Michael reaction EWG EWG EWG EWGEWG EWG Nu:- Nu-CH2-CH:- H2C=CH NuCH2CH-CH2CH:- Repeat CH2-CH where EWG an electron-withdrawing group
▪ Vinyl monomers with electron-withdrawing substituents (EWG) can be polymerized by anionic catalysts ▪ Chain-carrying step is nucleophilic addition of an anion to the unsaturated monomer by a Michael reaction Anionic Polymerization
Examples of Anionic Polymerization Products Acrylonitrile (H2C=CHCN),methyl methacrylate [H2C=C(CH3)CO2CH3],and styrene (H2C=CHCH5)polymerize anionically -Styrofoam cups are prepared anionically using stryene with butyllithium as the catalyst T八 Bu:-Li+ H2CCH Bu-CH2-CH:- Repeat -CH2-CH-In Styrene Polystyrene
▪ Acrylonitrile (H2C=CHCN), methyl methacrylate [H2C=C(CH3 )CO2CH3 ], and styrene (H2C=CHC6H5 ) polymerize anionically ▪ Styrofoam cups are prepared anionically using stryene with butyllithium as the catalyst Examples of Anionic Polymerization Products
Examples of Anionic Polymerization Products n“Super glue”is a anionic polymer of methyl a- cyanoacrylate which contains two EWGs Nu: CN Nu-CH2-C: CH2 C-OCH3 C-OCH3 Methyl a-cyanoacrylate H2C=C Dermabond (2-ethylhexyl a-cyanoacrylate) -OCH2CHCH2CH2CH2CH3 O= CH2CH3
▪ “Super glue” is a anionic polymer of methyl acyanoacrylate which contains two EWGs Examples of Anionic Polymerization Products

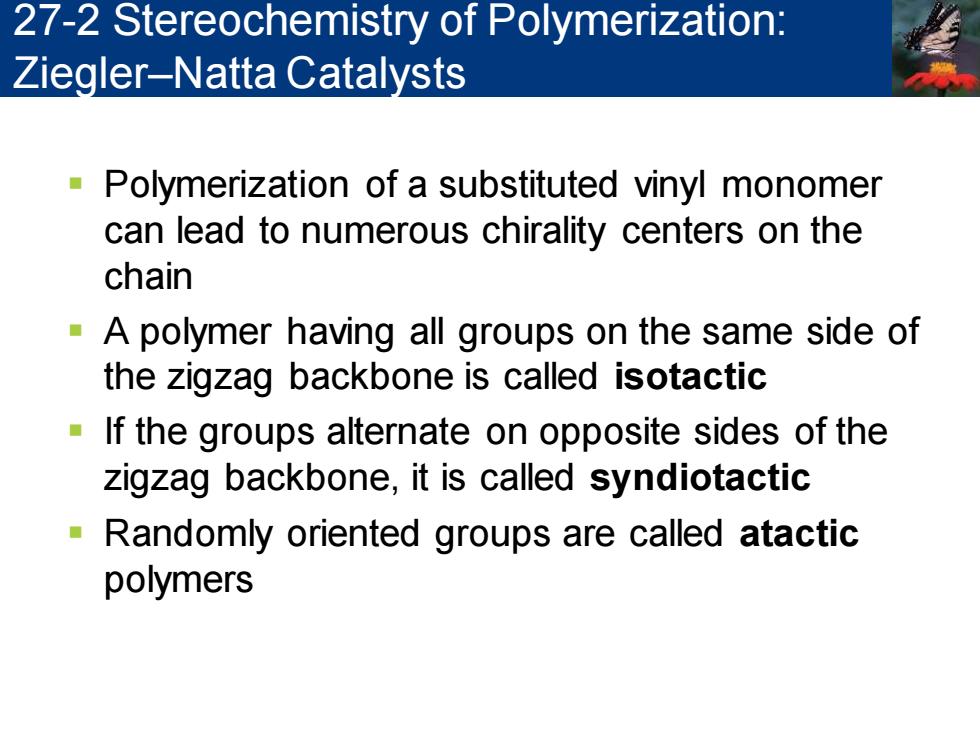

27-2 Stereochemistry of Polymerization: Ziegler-Natta Catalysts Polymerization of a substituted vinyl monomer can lead to numerous chirality centers on the chain A polymer having all groups on the same side of the zigzag backbone is called isotactic If the groups alternate on opposite sides of the zigzag backbone,it is called syndiotactic Randomly oriented groups are called atactic polymers
▪ Polymerization of a substituted vinyl monomer can lead to numerous chirality centers on the chain ▪ A polymer having all groups on the same side of the zigzag backbone is called isotactic ▪ If the groups alternate on opposite sides of the zigzag backbone, it is called syndiotactic ▪ Randomly oriented groups are called atactic polymers 27-2 Stereochemistry of Polymerization: Ziegler–Natta Catalysts
