电子科技大学：《电力系统运行与控制 Power System Operation and Control》课程教学资源（课件讲稿）Lecture 09 Power System Optimal Power Flow

Lecture 9 Power System Optimal Power Flow Dr.QI Huang School of Energy Science and Engineering,UESTC

Lecture 9 Power System Optimal Power Flow Dr. QI Huang School of Energy Science and Engineering, UESTC

Contents Introduction Optimal power flow model Solution of optimal power flow by linear programming 电力拿镜广城洲量写控制四川省重点实验蜜 家电

电力系统广域测量与控制四川省重点实验室 Contents  Introduction  Optimal power flow model  Solution of optimal power flow by linear programming

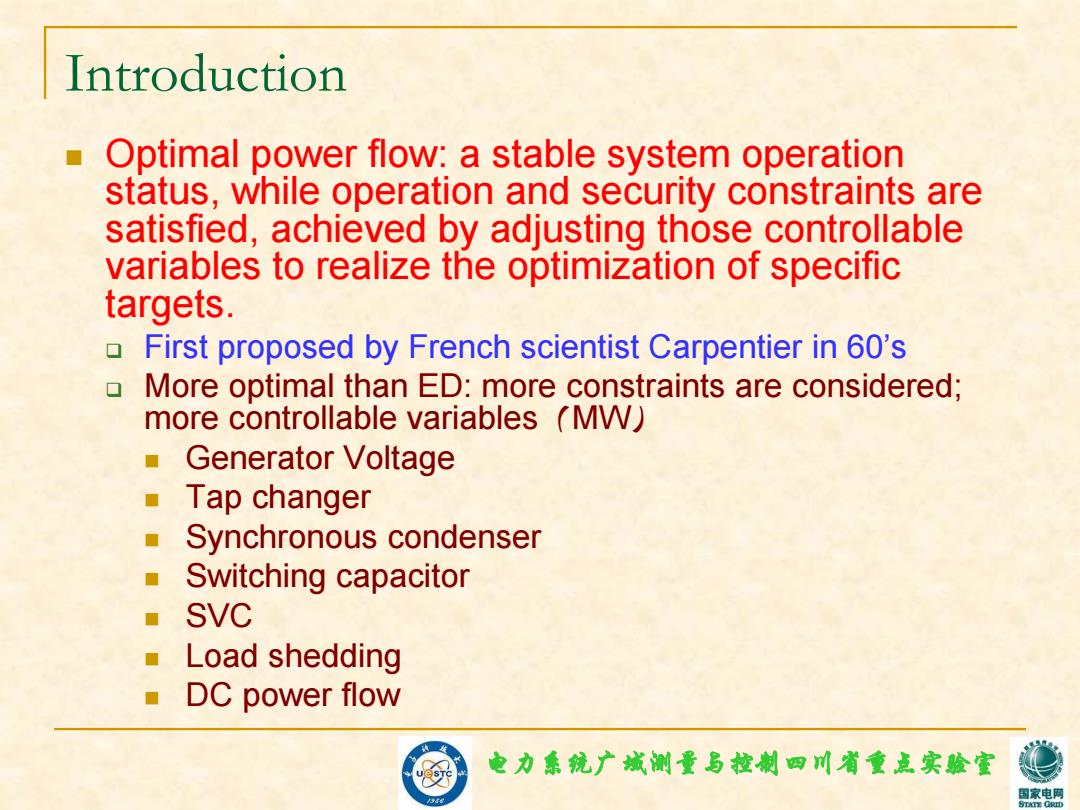

Introduction Optimal power flow:a stable system operation status,while operation and security constraints s are satisfied,achieved by adjusting those controllable variables to realize the optimization of specific targets. First proposed by French scientist Carpentier in 60's More optimal than ED:more constraints are considered; more controllable variables (MW) ■ Generator Voltage Tap changer Synchronous condenser Switching capacitor ■ SVC Load shedding ■ DC power flow 电力拿镜广城洲量写控制四川省童点实验蜜 国家电网

电力系统广域测量与控制四川省重点实验室 Introduction  Optimal power flow: a stable system operation status, while operation and security constraints are satisfied, achieved by adjusting those controllable variables to realize the optimization of specific targets.  First proposed by French scientist Carpentier in 60’s  More optimal than ED: more constraints are considered; more controllable variables（MW）  Generator Voltage  Tap changer  Synchronous condenser  Switching capacitor  SVC  Load shedding  DC power flow

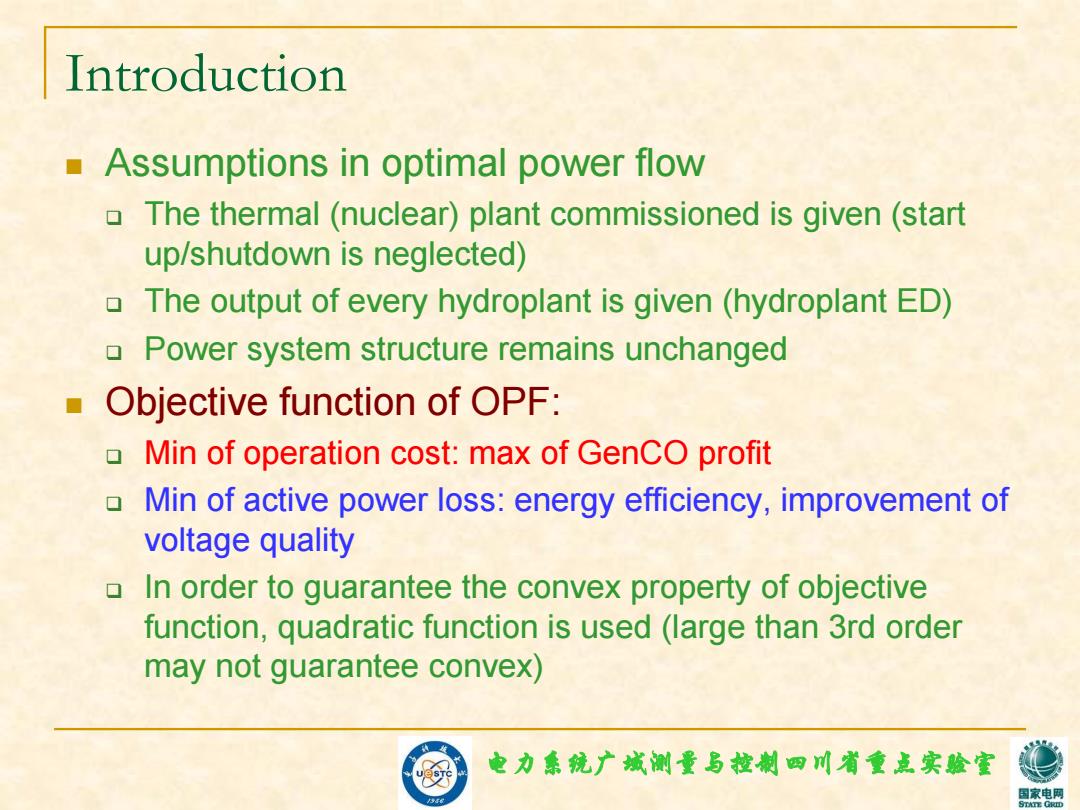

Introduction Assumptions in optimal power flow The thermal(nuclear)plant commissioned is given(start up/shutdown is neglected) The output of every hydroplant is given(hydroplant ED) Power system structure remains unchanged Objective function of OPF: Min of operation cost:max of GenCO profit Min of active power loss:energy efficiency,improvement of voltage quality In order to guarantee the convex property of objective function,quadratic function is used (large than 3rd order may not guarantee convex) 电力拿镜广城洲量写控制四川省童点实验蜜 家电网

电力系统广域测量与控制四川省重点实验室 Introduction  Assumptions in optimal power flow  The thermal (nuclear) plant commissioned is given (start up/shutdown is neglected)  The output of every hydroplant is given (hydroplant ED)  Power system structure remains unchanged  Objective function of OPF:  Min of operation cost: max of GenCO profit  Min of active power loss: energy efficiency, improvement of voltage quality  In order to guarantee the convex property of objective function, quadratic function is used (large than 3rd order may not guarantee convex)

OPF model Objective min ∑F(P)=∑(a,P+a,P+a,) Function: ieall gen ieall gen. Po-Po-V V,(G cos0 +B sin)=0 Constraint: Q-0-25(G,sn8-R,os0,)=0 Generator bus P。≤PaSFa voltage Q≤Qo≤0a constraint: -Gi '≤r≤ 电力集院广城测量与控制四川省重点实验蜜 家电

电力系统广域测量与控制四川省重点实验室 OPF model 2 2 1 0 gen. gen. min ( ) ( ) i i Gi i Gi i i all i all F P a P a P a        1 1 ( cos sin ) 0 ( sin cos ) 0 n Gi Di i j ij ij ij ij j n Gi Di i j ij ij ij ij j P P V V G B Q Q V V G B                        Gi Gi Gi Gi Gi Gi i i i P P P Q Q Q V V V                 Objective Function: Constraint: Generator & bus voltage constraint:
