Fusion Enery How is such powerful energy in the sun achieved? How much energy does the sun radiate per second? 3.8×1026J How many kilos does the sun The sun lose per second? Solar central temperature:106 K(core 4×109kg temperature up to 15 million degrees) Very high pressure:300 billion atmospheres ●A lot of particles Considerable time span The reaction cross section is large enough
Fusion Enery How is such powerful energy in the sun achieved? Solar central temperature: 106 K (core temperature up to 15 million degrees) Very high pressure: 300 billion atmospheres A lot of particles Considerable time span The reaction cross section is large enough The sun How much energy does the sun radiate per second? 3.8× 1026 J How many kilos does the sun lose per second? 4×109 kg
Fusion Enery Main nuclear reactions in the sun p+p=D+(e+)+y 0.42 MeV (p质子，D氘，e+正电子，y中微子；反应寿命7*109年)； D+p=3He +r 5.5 MeV (3He氦3，r光子，反应寿命4秒) 3He+3He =4He +2p 12.86 MeV (4*105年)。 4p=4He+2(et)+2y+24.7MeV
Fusion Enery p+p=D+(e+ )+ 0.42 MeV (p质子,D氘,e+正电子, 中微子;反应寿命7*109年); D+p= 3He +r 5.5 MeV ( 3He -氦3, r光子,反应寿命4秒); 3He+ 3He = 4He +2p 12.86 MeV (4*105年)。 4p= 4He +2(e+ )+2 +24.7MeV Main nuclear reactions in the sun

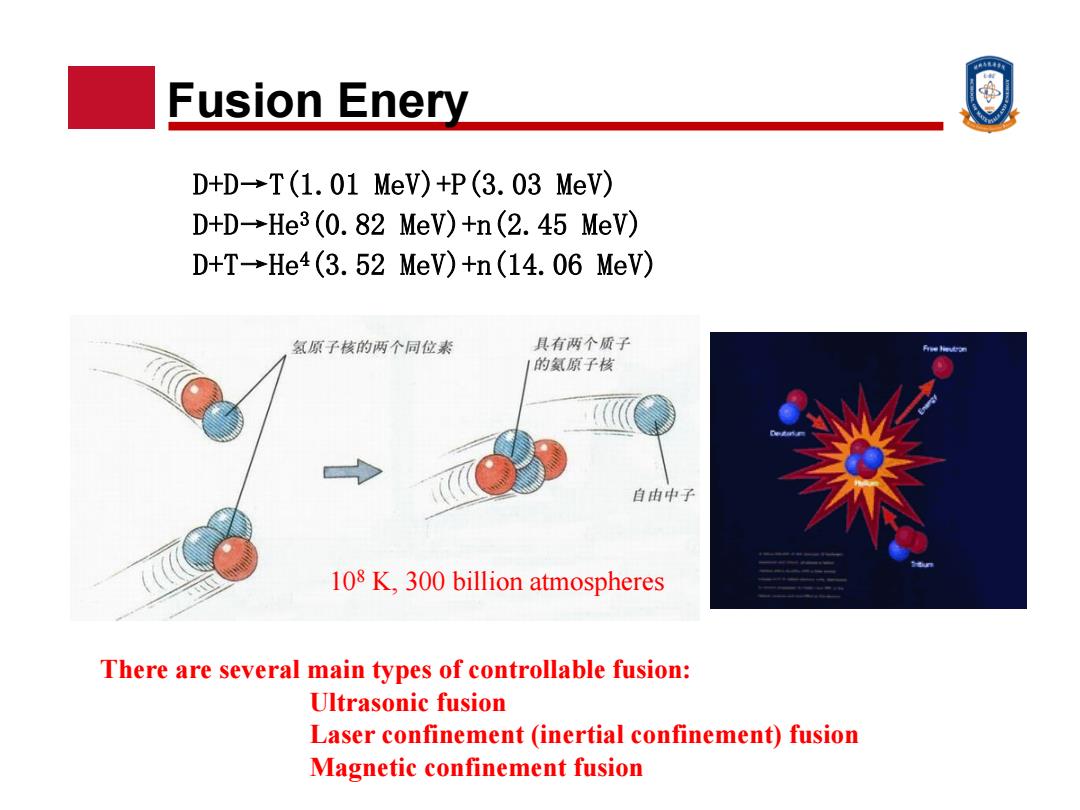

Fusion Enery D+D-T(1.01 MeV)+P(3.03 MeV) D+D-He3(0.82 MeV)+n(2.45 MeV) D+T-He4(3.52 MeV)+n(14.06 MeV) 氢原子核的两个同位素 具有两个质子 的氨原子核 自由中子 108 K,300 billion atmospheres There are several main types of controllable fusion: Ultrasonic fusion Laser confinement(inertial confinement)fusion Magnetic confinement fusion
Fusion Enery D+D→T(1.01 MeV)+P(3.03 MeV) D+D→He3(0.82 MeV)+n(2.45 MeV) D+T→He4(3.52 MeV)+n(14.06 MeV) There are several main types of controllable fusion: Ultrasonic fusion Laser confinement (inertial confinement) fusion Magnetic confinement fusion 108 K, 300 billion atmospheres
Fusion Enery Two Different Ways to Fusion Lawson Criterion:nx≥3.9xl0'(s/mm),T约为l0K。 must be achieved Temperature must be around T=6...15 eV Two ways to fulfil Lawson criterion: (1)First solution (magnetically confined plasmas):increase confinement time (1014~1016/cm3,0.01~1s) (2)Other solution (inertial confinement fusion -ICF): increase density of fusion plasma(1023/cm3,ns)
Fusion Enery • Lawson Criterion: must be achieved • Temperature must be around T = 6 ... 15 eV • Two ways to fulfil Lawson criterion: (1) First solution (magnetically confined plasmas): increase confinement time (1014～1016/cm3 , 0.01～1s) (2) Other solution (inertial confinement fusion - ICF): increase density of fusion plasma (1023/cm3 , ns) Two Different Ways to Fusion 要实现受控核聚变，必须满足两个基本条件，一是必须将燃料加热到很高的热核反应 温度；二是，必须在足够时间长时间内将高温高密度等离子体约束在一起。Lawson 判据限 定了实现核聚变的具体条件，即受约束的等离子体必须达到一定的密度 n 、温度 T 及约束 时间 。对氘氚反应， 3.9 10 ( / ) 11 3 n s mm ，T 约为 K 8 10
