Chapter 8 Composite Frames and Joints Prof.Shiming Chen 2013,May
Chapter 8 Composite Frames and Joints Prof. Shiming Chen 2013, May

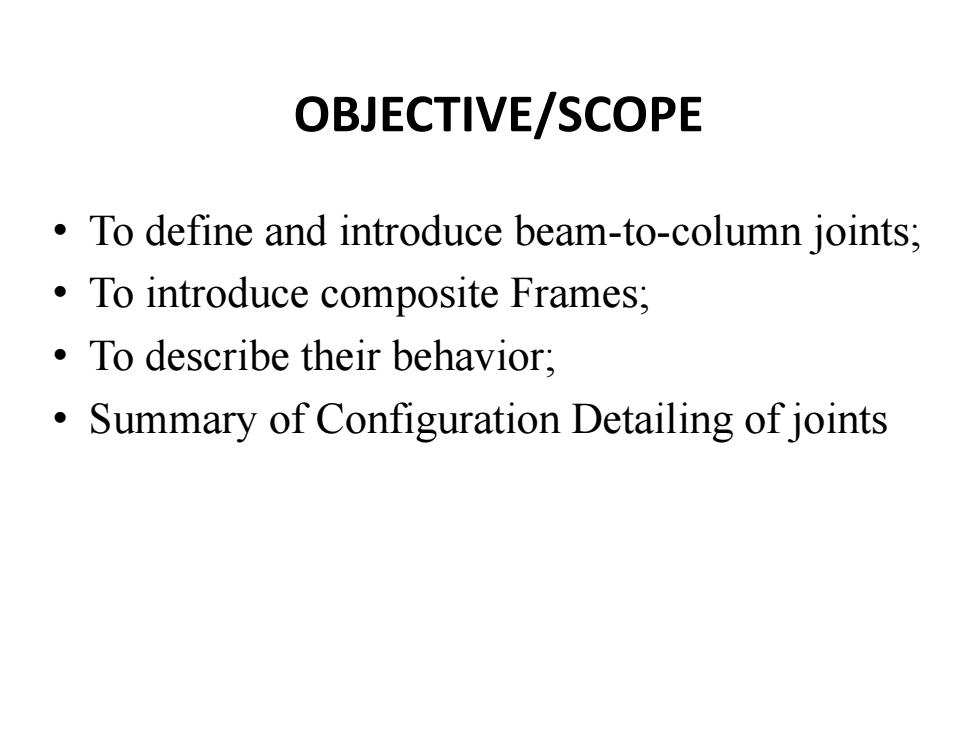

OBJECTIVE/SCOPE To define and introduce beam-to-column joints; To introduce composite Frames; To describe their behavior; Summary of Configuration Detailing of joints
OBJECTIVE/SCOPE • To define and introduce beam-to-column joints; • To introduce composite Frames; • To describe their behavior; • Summary of Configuration Detailing of joints
8.1 Introduction A continuous beam in a building may be interrupted by its supporting internal columns;and these members are usually part of a framed structure.By definition,composite frame is a framed structure in which some or all of the elements are composite members and most of the remainder are structural steel members. Composite joint is a joint between a composite member and another composite,steel,or reinforced concrete member,in which reinforcement is taken into account in design for the resistance and the stiffness of the joint
8.1 Introduction • A continuous beam in a building may be interrupted by its supporting internal columns; and these members are usually part of a framed structure. By definition, composite frame is a framed structure in which some or all of the elements are composite members and most of the remainder are structural steel members. • Composite joint is a joint between a composite member and another composite, steel, or reinforced concrete member, in which reinforcement is taken into account in design for the resistance and the stiffness of the joint

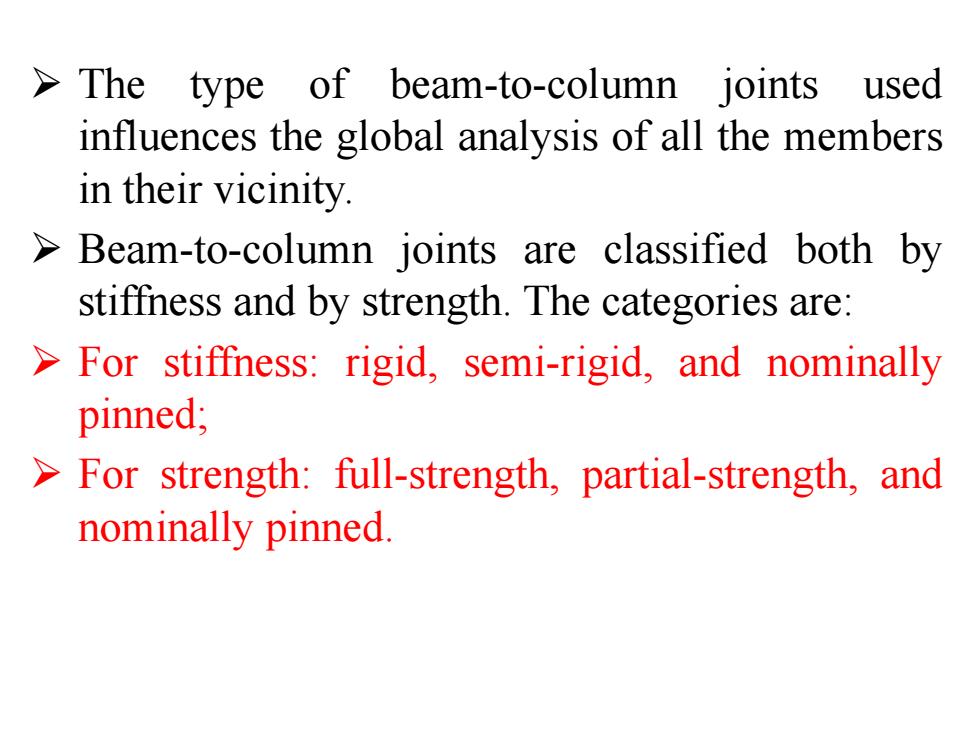

The type of beam-to-column joints used influences the global analysis of all the members in their vicinity. Beam-to-column joints are classified both by stiffness and by strength.The categories are: For stiffness:rigid,semi-rigid,and nominally pinned; > For strength:full-strength,partial-strength,and nominally pinned
The type of beam-to-column joints used influences the global analysis of all the members in their vicinity. Beam-to-column joints are classified both by stiffness and by strength. The categories are: For stiffness: rigid, semi-rigid, and nominally pinned; For strength: full-strength, partial-strength, and nominally pinned
Composite flush end plate connections Flush end plate connection: One popular types used in construction,in which the end plate is usually welded to the beam before being bolted to the column section on-site. Connections to concrete-filled tubular sections External Diaphragm type Internal Diaphragm connections Diaphragm Steel Steel Beam Beam Square CFT Column Circular CFT Column
Composite flush end plate connections Flush end plate connection: One popular types used in construction, in which the end plate is usually welded to the beam before being bolted to the column section on-site. Connections to concrete-filled tubular sections Diaphragm type connections
