Chapter 5 Shear Connection 组合梁的抗剪连接 By Professor Shiming Chen Lecture Notes for Presentation 2013
Chapter 5 Shear Connection 组合梁的抗剪连接 By Professor Shiming Chen Lecture Notes for Presentation 2013
SUMMARY The forces in a typical composite beam are reviewed and their action on the connectors is described. Several basic forms of connectors are introduced. Design values for ultimate strength and their experimental evaluation Full connection is explained together with the use of reductions of connector strength by recourse to moment interaction diagrams
SUMMARY • The forces in a typical composite beam are reviewed and their action on the connectors is described. • Several basic forms of connectors are introduced. • Design values for ultimate strength and their experimental evaluation • Full connection is explained together with the use of reductions of connector strength by recourse to moment interaction diagrams
5.1 Introduction Shear connection is an important feature in steel- concrete composite construction抗剪连接件是将钢梁与混 凝土板组合在一起共同工作的关键部件。 .If slip at the interface is free to occur,each component (steel beam/concrete slab)will act independently. .If slip at the interface is eliminated,the slab and steel beam will act together as a composite unit.The resulting increase in strength and stiffness depends on the extent to which slip is prevented. .The use of mechanical shear connectors is essential for the satisfactory performance of composite beams
5.1 Introduction Shear connection is an important feature in steelconcrete composite construction 抗剪连接件是将钢梁与混 凝土板组合在一起共同工作的关键部件。 •If slip at the interface is free to occur, each component (steel beam/concrete slab) will act independently. •If slip at the interface is eliminated, the slab and steel beam will act together as a composite unit. The resulting increase in strength and stiffness depends on the extent to which slip is prevented. •The use of mechanical shear connectors is essential for the satisfactory performance of composite beams
Endslip Na endslip Wo0m Na interaction Partial interaction Complete interaction 汤☑ Composite steel beam and concrete slab interaction 混凝土板与钢梁的相互作用
Composite steel beam and concrete slab interaction 混凝土板与钢梁的相互作用

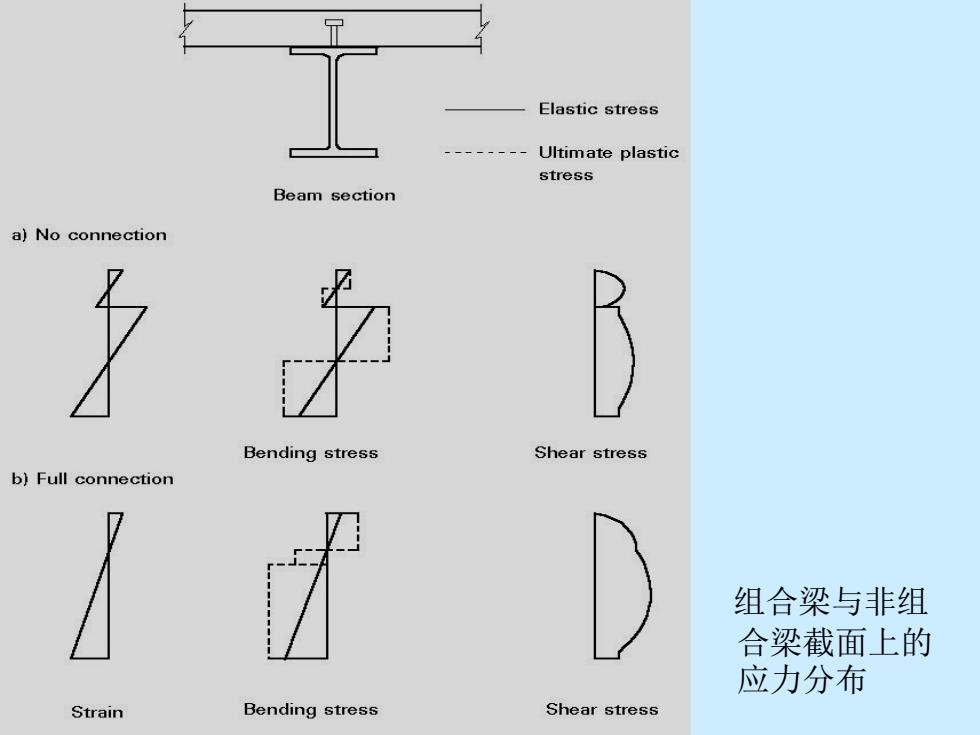

入 Elastic stress --------Ultimate plastic stress Beam section a)No connection Bending stress Shear stress b)Full connection 组合梁与非组 合梁截面上的 应力分布 Strain Bending stress Shear stress
组合梁与非组 合梁截面上的 应力分布
