1 Structure and Bonding in Organic Molecules The first chapter of the text covers the basic features associated with the bonding together of atoms to make molecules. Much of the material (at least through Section 1-8) is really a review of topics with which you may have some familiarity from freshman chemistry. In other words, it describes just those topics from freshman chemistry that are the most important to know in order to get off to a good start in organic chemistry: bonds, Lewis structures, resonance, atomic and molecular orbitals, and hybrid orbitals. Read the chapter, try the problems, read the comments below, and, if necessary, look to other supplementary sources for additional problems and examples. For instance, Pushing Electrons: A Guide for Students of Organic Chemistry by D. Weeks (Saunders, 1997) contains extensive coverage of Lewis structures and resonance. Outline of the Chapter 1-1 Overview 1-2 Coulomb Forces The simple physical basis of bonding between atoms. Conceptually important. 1-3 Ionic and Covalent Bonds Review of principles involved. 1-4 Lewis Structures Perhaps the most critical section of the chapter. You must learn how to draw correct Lewis structures of molecules. 1-5 Resonance Forms Applies to species for which no single Lewis picture adequately describes the true structure. 1-6 Atomic Orbitals Review material. 1-7 Molecular Orbitals Review material. 1-8 Hybrid Orbitals Simplest way to understand the geometry of molecules in the context of the atomic orbitals involved in bonding. 1-9 Structures and Formulas of Organic Molecules General information section. Conventions for drawing formulas. 1 1559T_ch01_01-17 10/22/05 1:48 Page 1
1559Tch0101-1710/22/051:48Page2 EQA 2.chapter 1 STRUCTURE AND BONDNG IN ORGANIC MOLECULES Keys to the Chapter 1-2 and 1-3.Coulomb Forces;Bonds d to each othe r (as de d in this chapter).but difference betw en the atoms.the bondins electrons tend to be closer to the more electr onegative atom,thereby creating a partial charge separation.In general,for A less electronegative than B.we have A:B See the in the vicinity of more partial negative charge it themore in its vicinity.the more partial posi arge it be to compare colors fro t maps.how e co anic chem oms with opposite charges or polarities are attra h other.Then. lectrons mo up of electrons.it's necessary to keep track of how many electrons are involved.and where they are located. Lewis structres are of paramount importance in this bookkeeping process. 1-4.Lewis Structures Whether you've ever done Le wis structures before or not.follow the rules in Section 1-4 very closely.Becom aroun mon a or the that you will quickly and confidently be able to picture a Lewis structure for any y of the tyres of species vo u gain confidence through practice.you will be able to use shorthand notations nic compounds and other anic or ing anic species Thes kkeeping system to help us keep track of electrons in reactions 1-5. Resonance Forms arrows are in kind of n is the se of oe-eade play in organic chemistry.As shown in this section,many species have structures that cannot be represented hich can only b descr inte▣ nnature betweent wo or more co a molecule by drawing the resonance forms separated by double-beaded arrows and enclosed in brackets.The eis called the resonance hybrid.The only difference between the reson ce forms is a differen one Lewis structure.In cases like this you need to be only and if t The second convention in Section 1-5 is the use of show the movement of electron pairs In this section the only gplicationisinsho g ho w the elec se arrows you leam and understand or on movement The guidelines in the textbook for determining e degree to which each resonance form contributes to the actual structure are the ones you will use the most when dealing with the most common atoms in organi

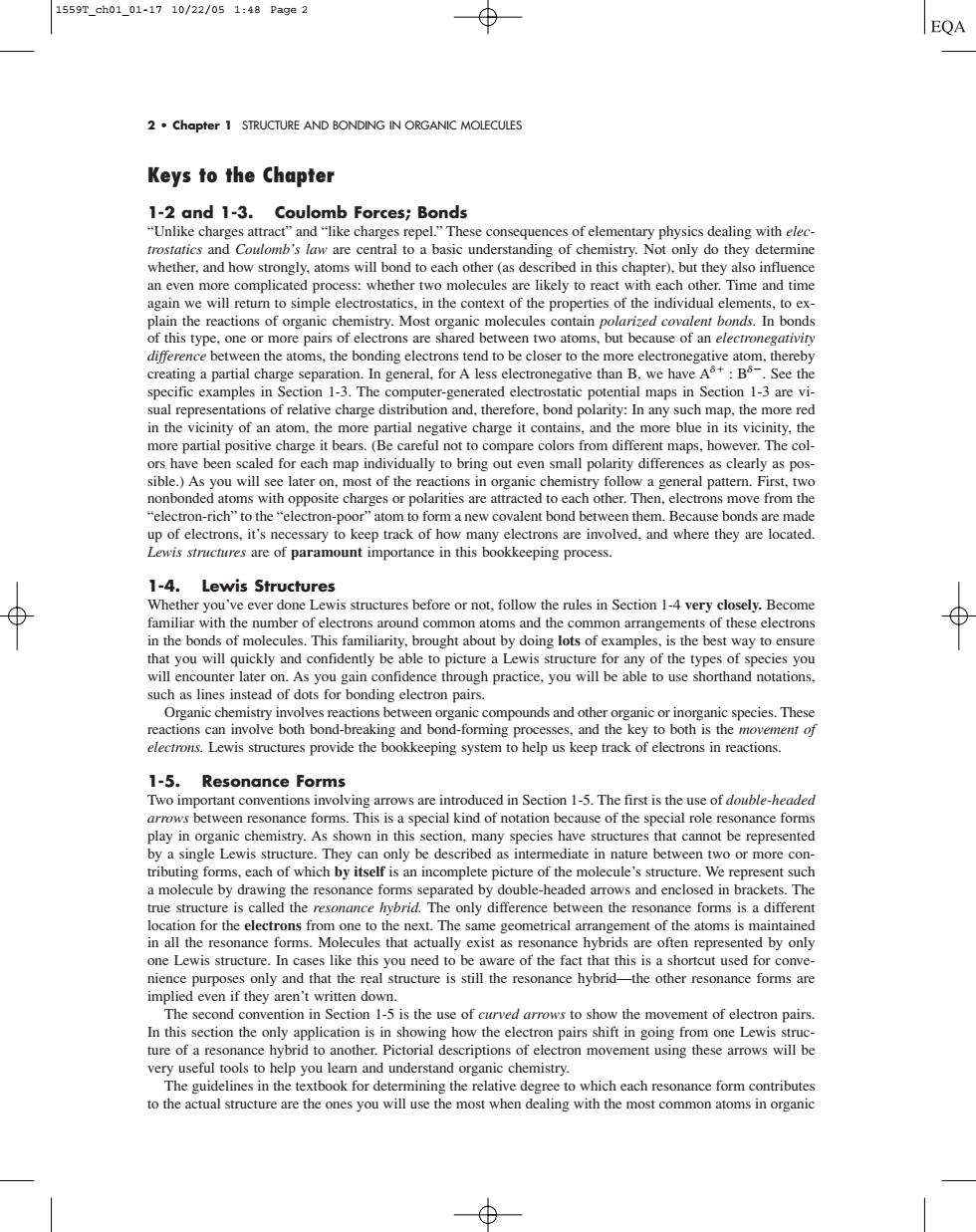

Keys to the Chapter 1-2 and 1-3. Coulomb Forces; Bonds “Unlike charges attract” and “like charges repel.” These consequences of elementary physics dealing with electrostatics and Coulomb’s law are central to a basic understanding of chemistry. Not only do they determine whether, and how strongly, atoms will bond to each other (as described in this chapter), but they also influence an even more complicated process: whether two molecules are likely to react with each other. Time and time again we will return to simple electrostatics, in the context of the properties of the individual elements, to explain the reactions of organic chemistry. Most organic molecules contain polarized covalent bonds. In bonds of this type, one or more pairs of electrons are shared between two atoms, but because of an electronegativity difference between the atoms, the bonding electrons tend to be closer to the more electronegative atom, thereby creating a partial charge separation. In general, for A less electronegative than B, we have A : B. See the specific examples in Section 1-3. The computer-generated electrostatic potential maps in Section 1-3 are visual representations of relative charge distribution and, therefore, bond polarity: In any such map, the more red in the vicinity of an atom, the more partial negative charge it contains, and the more blue in its vicinity, the more partial positive charge it bears. (Be careful not to compare colors from different maps, however. The colors have been scaled for each map individually to bring out even small polarity differences as clearly as possible.) As you will see later on, most of the reactions in organic chemistry follow a general pattern. First, two nonbonded atoms with opposite charges or polarities are attracted to each other. Then, electrons move from the “electron-rich” to the “electron-poor” atom to form a new covalent bond between them. Because bonds are made up of electrons, it’s necessary to keep track of how many electrons are involved, and where they are located. Lewis structures are of paramount importance in this bookkeeping process. 1-4. Lewis Structures Whether you’ve ever done Lewis structures before or not, follow the rules in Section 1-4 very closely. Become familiar with the number of electrons around common atoms and the common arrangements of these electrons in the bonds of molecules. This familiarity, brought about by doing lots of examples, is the best way to ensure that you will quickly and confidently be able to picture a Lewis structure for any of the types of species you will encounter later on. As you gain confidence through practice, you will be able to use shorthand notations, such as lines instead of dots for bonding electron pairs. Organic chemistry involves reactions between organic compounds and other organic or inorganic species. These reactions can involve both bond-breaking and bond-forming processes, and the key to both is the movement of electrons. Lewis structures provide the bookkeeping system to help us keep track of electrons in reactions. 1-5. Resonance Forms Two important conventions involving arrows are introduced in Section 1-5. The first is the use of double-headed arrows between resonance forms. This is a special kind of notation because of the special role resonance forms play in organic chemistry. As shown in this section, many species have structures that cannot be represented by a single Lewis structure. They can only be described as intermediate in nature between two or more contributing forms, each of which by itself is an incomplete picture of the molecule’s structure. We represent such a molecule by drawing the resonance forms separated by double-headed arrows and enclosed in brackets. The true structure is called the resonance hybrid. The only difference between the resonance forms is a different location for the electrons from one to the next. The same geometrical arrangement of the atoms is maintained in all the resonance forms. Molecules that actually exist as resonance hybrids are often represented by only one Lewis structure. In cases like this you need to be aware of the fact that this is a shortcut used for convenience purposes only and that the real structure is still the resonance hybrid—the other resonance forms are implied even if they aren’t written down. The second convention in Section 1-5 is the use of curved arrows to show the movement of electron pairs. In this section the only application is in showing how the electron pairs shift in going from one Lewis structure of a resonance hybrid to another. Pictorial descriptions of electron movement using these arrows will be very useful tools to help you learn and understand organic chemistry. The guidelines in the textbook for determining the relative degree to which each resonance form contributes to the actual structure are the ones you will use the most when dealing with the most common atoms in organic 2 • Chapter 1 STRUCTURE AND BONDING IN ORGANIC MOLECULES 1559T_ch01_01-17 10/22/05 1:48 Page 2
1559T_ch01_01-1710/22/051:48Page3 ⊕ EQA Keys to the Chapter·3 chemis ALWAYS TRUE (these are your reminders): 1.Individual contributing resonance formsdoexist.Only the resonance ybrid.which isa"weighted 2.Altrage"or nd of s have the same total number of valence electron and the same total charge their valence shell in any .e geometry and set of atomic positions for the actual chemical substance being represented. USUALLY TRUE(these are mostly implied by the guidelines in the textbook-we're just spelling them out): differ ony in the positions ofand/or nonbonding elctos Thebond stay put. ane form into another h tron de rs from places where there is an 3. ms witl are u ally more im t contributors than resonance usually more important contributors. )and below(r. 1)are nor limited to octets 1-6,1-7,and 1-8.Orbitals Atomic orbitals are a convenient way to represent the distribution of electrons in atoms.Note that the and ced with the the char ital an alterative to the Lewis electron-dot method for umber of m nbing a bond is a onding atomic o ls and will give rise to st Hybrid orbitals are d ved by mixing atomic wave functions.They are used to explain the geo several ac is long e ny by contributing to bonding.The participation of different numbers ofs and porbitals in the hybridization al. ange of bor angles.thereby permitting electron pairs to get as far away from each other as pos- Keep in mind some points for bookkeeping with hybridization.If an atom starts with ones orbital and three p orbitals,it will always end up with a total of four orbitals,no matter how they have hybridized for bonding contains 50%s and 50 character,whereas an sp2hybrid iss andp in na ature fore hybric 1.sp hybridized atom (linear geometry):contains two sp orbitals (each one iss andp in character)and two ordinary p orbitals 2(s+D)+2D=1s+3
chemistry. It is somewhat abbreviated. Some additional considerations regarding resonance forms (and some reminders of the basic rules) follow. ALWAYS TRUE (these are your reminders): 1. Individual contributing resonance forms do not exist. Only the resonance hybrid, which is a “weighted average” or blend of the contributing forms, is real. 2. All resonance forms of a single chemical species must have the same total number of valence electrons and the same total charge. 3. Second-row atoms (i.e., up through neon) can never exceed an octet in their valence shell in any resonance form. In other words, the rules for drawing Lewis structures apply to drawing resonance forms. 4. Atom positions and geometries do not change from one resonance form to another—there is only one geometry and set of atomic positions for the actual chemical substance being represented. USUALLY TRUE (these are mostly implied by the guidelines in the textbook—we’re just spelling them out): 1. Resonance forms differ only in the positions of and/or nonbonding electrons. The bond electrons normally stay put. 2. We convert one resonance form into another by moving electron pairs from places where there is an excess of electron density to places where there is an electron deficiency. 3. Resonance forms with the most covalent bonds are usually more important contributors than resonance forms with fewer covalent bonds (but don’t forget that octets take priority). 4. Resonance forms with fewer charged atoms are usually more important contributors. 5. Atoms in the third row (P, S, Cl) and below (Br, I) are not limited to octets of electrons in their outer shells. In fact, Lewis structures with 10 or 12 valence electrons are frequently written for these elements. 1-6, 1-7, and 1-8. Orbitals Atomic orbitals are a convenient way to represent the distribution of electrons in atoms. Note that the and signs associated with parts of these orbitals do not refer to electrical charges. They refer to mathematical signs of functions (wave functions) associated with the distribution of the electrons. Molecular orbitals are similar but are spread out over more than one atom. They provide an alternative to the Lewis electron-dot method for picturing bonds. The number of molecular orbitals involved in describing a bond is always exactly equal to the number of atomic orbitals contributed by the individual atoms. Overlap of atomic orbitals results in bonding, antibonding, and sometimes also nonbonding molecular orbitals. Bonding orbitals are always lower in energy (more stable) than the original constituent atomic levels, and antibonding orbitals are always higher in energy. Thus bonding electrons will be more stable than electrons in nonbonding atomic orbitals and will give rise to strong bonds. Electrons in antibonding orbitals will reduce bonding. Hybrid orbitals are derived by mixing atomic wave functions. They are used to explain the geometrical shapes of molecules. Hybridization provides several advantages for bonding. With the larger lobe of the hybrid orbital located in between the bonded atoms, more electron density is located where it can “do some good” by contributing to bonding. The participation of different numbers of s and p orbitals in the hybridization allows a wide range of bond angles, thereby permitting electron pairs to get as far away from each other as possible and minimizing unfavorable electrostatic repulsion. Keep in mind some points for bookkeeping with hybridization. If an atom starts with one s orbital and three p orbitals, it will always end up with a total of four orbitals, no matter how they have hybridized for bonding purposes. Depending on the ratio of atomic orbitals used in the hybridization, we can describe the resulting hybrid orbitals as consisting of certain percentages of “s character” and “p character.” For example, an sp orbital contains 50% s and 50% p character, whereas an sp2 hybrid is 1 3 s and 2 3 p in nature. The total s and p character around an atom after hybridization always equals that which was present in the orbitals before hybridization: 1. sp hybridized atom (linear geometry): contains two sp orbitals (each one is 1 2 s and 1 2 p in character) and two ordinary p orbitals 2( 1 2 s 1 2 p) 2p 1s 3p Keys to the Chapter • 3 1559T_ch01_01-17 10/22/05 1:48 Page 3
1559r_ch0101-1710/22/051:48Page4 EQA 4.chapter 1 STRUCTURE AND BONDNG IN ORGANIC MOLECULES 2.sphybridized atom (trigonal planar geometry):contains three sporbitals (each one iss andp in character)and one ordinary p orbita 3附s+p)+p=1s+3p 3.sphybridized atom(tetrahedral geometry):contains four sporbitals (each one iss andp in character) 4哈s+p)=1s+3p So in all case exactly four orbitals are pre sent and add up to the equivalent of one s and three p.even though each type of hybridization leads toa form of bonding and molecular shape very different from any of the o show,the mathema al nature of hybridiza on is very flexible.to maximize favorabl yourl o e the mea hen Thee r the biand ything e illh Solutions to Problems 21.(and 22 and 25 -see below a): (b):C::N Triple bond is needed to give octets for C and N atoms. eththe5 (d)H 9 o有 侧H是&0 HN:N::一H:N @::6:一N:6 atom 8.based on the electronegativities in the periodic table

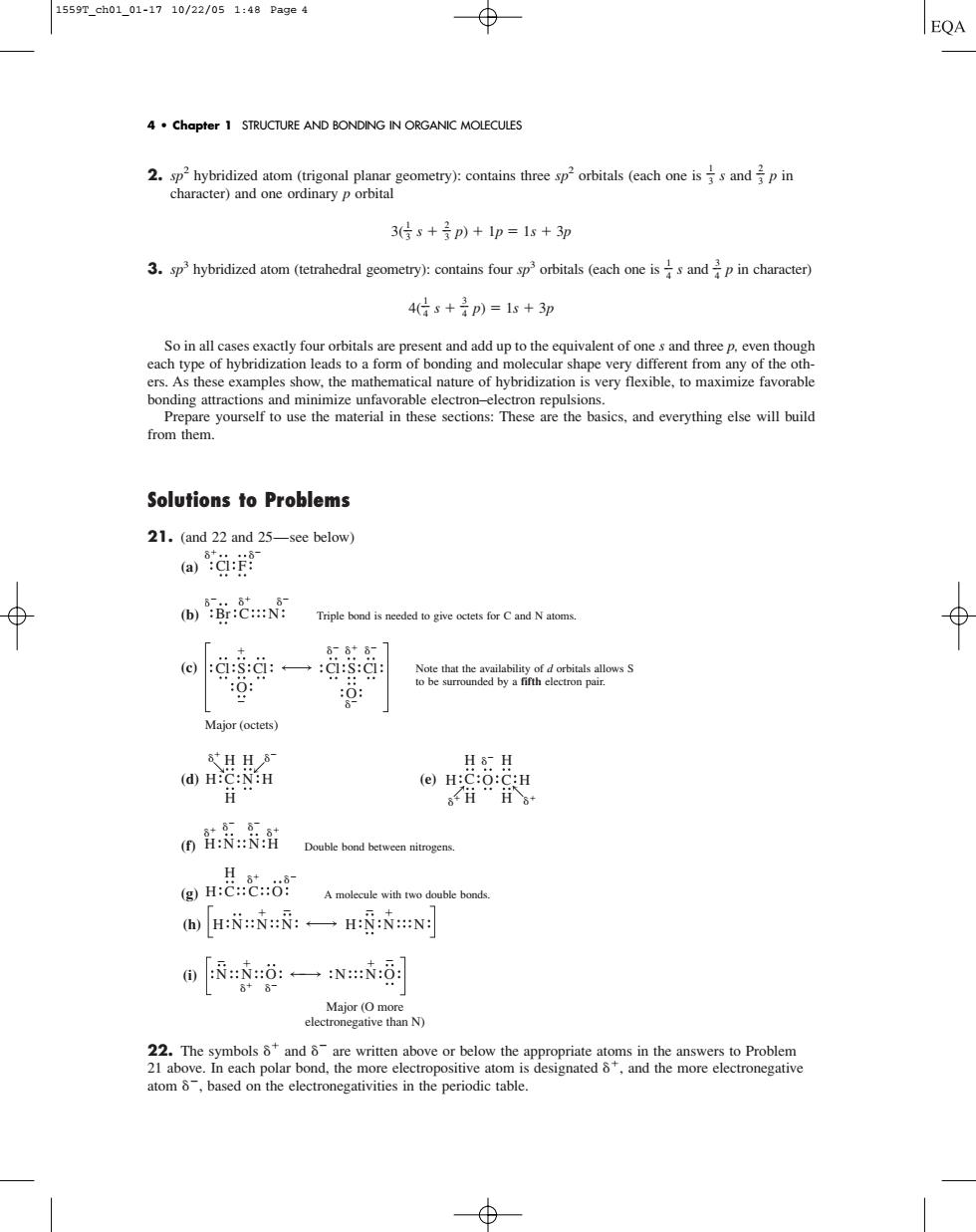

2. sp2 hybridized atom (trigonal planar geometry): contains three sp2 orbitals (each one is 1 3 s and 2 3 p in character) and one ordinary p orbital 3( 1 3 s 2 3 p) 1p 1s 3p 3. sp3 hybridized atom (tetrahedral geometry): contains four sp3 orbitals (each one is 1 4 s and 3 4 p in character) 4( 1 4 s 3 4 p) 1s 3p So in all cases exactly four orbitals are present and add up to the equivalent of one s and three p, even though each type of hybridization leads to a form of bonding and molecular shape very different from any of the others. As these examples show, the mathematical nature of hybridization is very flexible, to maximize favorable bonding attractions and minimize unfavorable electron–electron repulsions. Prepare yourself to use the material in these sections: These are the basics, and everything else will build from them. Solutions to Problems 21. (and 22 and 25—see below) (a) (b) Triple bond is needed to give octets for C and N atoms. (c) Note that the availability of d orbitals allows S to be surrounded by a fifth electron pair. (d) (e) (f) Double bond between nitrogens. (g) A molecule with two double bonds. (h) (i) 22. The symbols and are written above or below the appropriate atoms in the answers to Problem 21 above. In each polar bond, the more electropositive atom is designated , and the more electronegative atom , based on the electronegativities in the periodic table. N N O N N O Major (O more electronegative than N) H N N N H N N N H H C C O H H N N H H H H C O C H H H H H H C N H Cl Cl S Cl Cl S O O Major (octets) Br C N Cl F 4 • Chapter 1 STRUCTURE AND BONDING IN ORGANIC MOLECULES 1559T_ch01_01-17 10/22/05 1:48 Page 4
1559T_ch01_01-1710/22/051:48Page5 ⊕ EQA Solutions to Problems.5 23.(a)H: Hydride ion.Contrast H(a proton)an HH) H (b)H:C:- A.C has an octet and a -l charge H A carbocation.C has only a sextet and a +l chargs H (d)H:C A carbon"radical."C is neutral.bonded to only three other atoms.and surrounded by 7 electrons :H The methylammonium cion.The product of CH,NH,HNH H (h)H:C:::C:- Another carbanion od) (H:0:O:H Hydrogen peroxide 24.How to begin?Look at each atom and compare the bonding pattem with simpler structures that are more familiar to you.Count bonds.Count electrons.This exercise will make it easier for you to recognize similar situations later (as in exams).Then do the formal charge determination as described in the text. (a)The oxygen has three bonds and a lone pair.What simpler species do you know that is similar? 6(group for O)-[3 (half of shared e in bonds)+(unshared e)]=+1 rmal"neutral species.Therefore,based on our models,left and rightwe can derive the solution n the center H (b)The double bond betv en C and o cha hing The the and will have a +1 formal charge: c=0-H
23. (a) Hydride ion. Contrast H (a proton) and HT (H atom). (b) A carbanion. C has an octet and a 1 charge. (c) A carbocation. C has only a sextet and a 1 charge. (d) A carbon “radical.” C is neutral, bonded to only three other atoms, and surrounded by 7 electrons. (e) The methylammonium cation. The product of CH3NH2 H. Compare NH3 H NH4 . (f) Methoxide ion. The product of ionization of methanol, CH3OH CH3O H. Compare H2O HO H. (g) A “carbene.” A neutral carbon, bonded to two other atoms, with only a sextet of electrons. (h) Another carbanion. Carbanions [(b) and (h)], carbocations (c), free radicals (d), and carbenes (g) are reactive species of high energy. They can, however, function as reaction “intermediates.” (i) Hydrogen peroxide. 24. How to begin? Look at each atom and compare the bonding pattern with simpler structures that are more familiar to you. Count bonds. Count electrons. This exercise will make it easier for you to recognize similar situations later (as in exams). Then do the formal charge determination as described in the text. (a) The oxygen has three bonds and a lone pair. What simpler species do you know that is similar? Hydronium ion is one, probably the simplest. We’ve already seen the formal charge determination 1 for the oxygen in hydronium ion, based upon the calculation 6 (group # for O) [3 (half of shared e– in bonds) 2 (unshared e)] 1 The oxygen in the species in this problem is analogous. The carbon has four bonds, just like methane, a “normal” neutral species. Therefore, based on our models, left and right, we can derive the solution in the center: (b) The double bond between C and O changes nothing. The count is the same: carbon has four bonds and will be neutral, as in methane, and oxygen has three bonds and a lone pair, as in hydronium, and will have a 1 formal charge: C O H H H H H H O H H C O H H H H H H C H H H O O H C C H H C H H C O H H H H C N H H H H H C H H H C H H H C H H Solutions to Problems • 5 1559T_ch01_01-17 10/22/05 1:48 Page 5
