TOSHIBA IGBT (Discrete) Strobe Flash Dec,2003 TOSHIBA Semiconductor Company Discrete Semiconductor Division 2003 Dec DP054001101 1122
1/22 2003 Dec DP0540011_01 IGBT (Discrete) Dec, 2003 TOSHIBA Semiconductor Company Discrete Semiconductor Division Strobe Flash
TOSHIBA Summary of Discrete for Strobe Flasher Diode IGBT Compact Compact Hi-Power Hi-performance ▣Low Gate Drive US/S-FLAT M-FLAT Normal one:VGE=5V Released Ip=150A one New Device:VGE=3.3V with M-FLAT Strobe ▣Compact&Slim Flasher TSSOP-8 available Thyristor Focused smaller one ▣Guaranteed High Ic Compact Icp=150A(TSSOP-8 package) Developing NSM(*) Icp=200A(SOP-8 package) SCR for Xe Lamp Trigger 2003 Dec DP054001101 2122
2/22 2003 Dec DP0540011_01 Diode IGBT Summary of Discrete for Strobe Flasher Compact & Hi-performance Strobe Flasher Low Gate Drive Normal one : VGE=5V New Device : VGE=3.3V Compact & Slim TSSOP-8 available Focused smaller one Guaranteed High Ic Icp=150A(TSSOP-8 package) Icp=200A (SOP-8 package) Compact & Hi-Power US/S-FLAT & M-FLAT Released Ip=150A one with M-FLAT Compact Developing NSM(*) SCR for Xe Lamp Trigger Thyristor

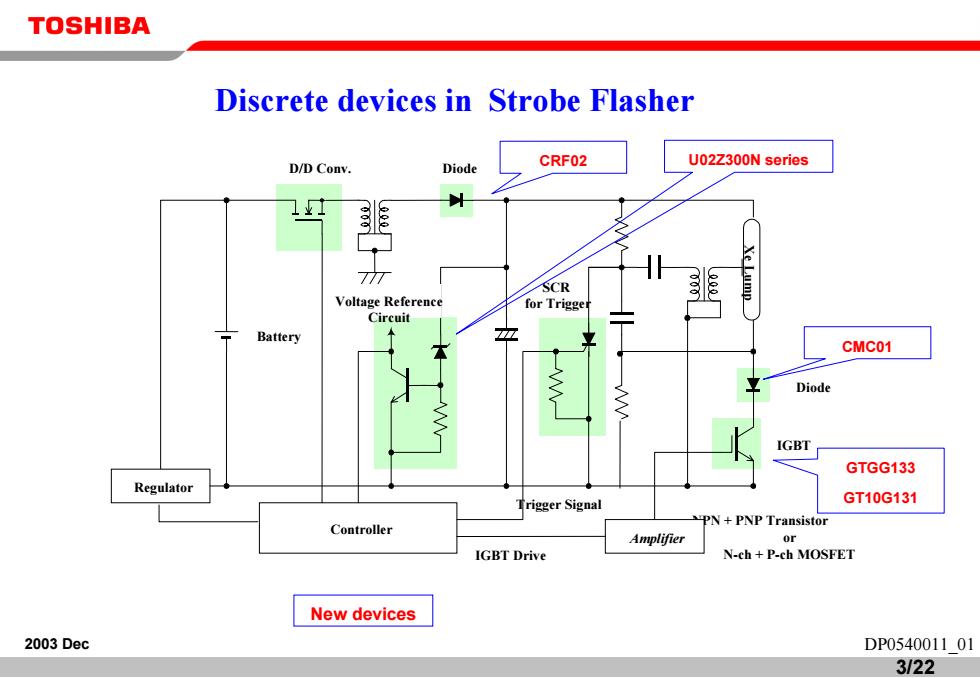

TOSHIBA Discrete devices in Strobe Flasher D/D Conv. Diode CRF02 U02Z300N series 717T SCR Voltage Reference for Trigger Circuit Battery 7 CMC01 Diode IGBT GTGG133 Regulator rigger Signal GT10G131 PN+PNP Transistor Controller Amplifier or IGBT Drive N-ch +P-ch MOSFET New devices 2003 Dec DP054001101 3/22
3/22 2003 Dec DP0540011_01 Discrete devices in Strobe Flasher NPN + PNP Transistor or IGBT Drive N-ch + P-ch MOSFET Trigger Signal SCR for Trigger Controller Amplifier D/D Conv. Diode Battery Diode IGBT Voltage Reference Circuit Regulator Xe Lump CRF02 U02Z300N series CMC01 GTGG133 GT10G131 New devices
TOSHIBA Discrete Line up Example for Strobe Flasher Circuit Blook Paokage P/N Ratings Major Charaoteristio 2SC5766 3A/10V hFE=700to2000 2SC5738 3.5A/20V hFE=400to1000 TSM 2SA2061 -2.5A-20W hFE=200 to 500 SSM3KO1T 3.2A30V 120mW@4V DC/DC Conv. SSM3JO1T -L.7A/-30V 400mW@-4V S0T-89 2SC5713 4A10V hFE=400to1000 (PW-MINI) 2S.42059 -3A/-20V hFE=200 to 500 VS-6 TPC6001 6A20V 30mW@4V TPC6101 -4.5A-20V 60mW @-4V S0T-89 Trigger URSFO5G49-1P 0.5A/400V with RGK=1k ohms Diode for Main Cirouit I-FLAT U1GC44S 1A/400V IFRM=130A M-FLAT CMCO1 1A/400V IFRM=150A Diode SMQ 1SS399 0.1A/400V 2n1 S-FLAT CRG02 0.7A400V SMD D0-41 1ZB100to390 100to390V/1W Zener Diode Thru hole package I-FLAT U1ZB100 to 390 100to390V/1W SMD LDO SMV TAR5S33 3.3V200m4 Vout=1.5 to 5.0V with ON/OFF function TAR5S50 5.0V200mA GT10G131 200A/400V VGE=4V Min.drive voltage SOP-8 GT8G132 150A/400W Flashor VGE=4V Min.drive voltage GT5G131 130A/400V VGE=3V Min.drive voltage TSSOP-8 GT8G133 150A/400V VGE=4V Min.drive voltage US6 SSM6LO5FU +0.4/-0.2A/±20V N-ch+P-ch,2inl IGBT Driver Portion SM6 HN1B04F ±0.5A±30V NPN+PNP,2inl USM 2SC4666 150mA50V hFE=600to3600 2003 Dec DP054001101 4122
4/22 2003 Dec DP0540011_01 Discrete Line up Example for Strobe Flasher Circuit Block Package P/N Ratings Major Characteristic 2SC5766 3A/10V hFE=700 to 2000 2SC5738 3.5A/20V hFE=400 to 1000 2SA2061 -2.5A/-20V hFE=200 to 500 SSM3K01T 3.2A/30V 120mW @4V SSM3J01T -1.7A/-30V 400mW @-4V SOT-89 2SC5713 4A/10V hFE=400 to 1000 (PW-MINI) 2SA2059 -3A/-20V hFE=200 to 500 TPC6001 6A/20V 30mW @4V TPC6101 -4.5A/-20V 60mW @-4V SOT-89 URSF05G49-1P 0.5A/400V with RGK=1k ohms I-FLAT U1GC44S 1A/400V IFRM=130A M-FLAT CMC01 1A/400V IFRM=150A SMQ 1SS399 0.1A/400V 2n1 S-FLAT CRG02 0.7A/400V SMD DO-41 1ZB100 to 390 100 to 390V/1W Thru hole package I-FLAT U1ZB100 to 390 100 to 390V/1W SMD TAR5S33 3.3V/200mA Vout=1.5 to 5.0V with ON/OFF function TAR5S50 5.0V/200mA GT10G131 200A/400V VGE=4V Min. drive voltage GT8G132 150A/400V VGE=4V Min. drive voltage GT5G131 130A/400V VGE=3V Min. drive voltage TSSOP-8 GT8G133 150A/400V VGE=4V Min. drive voltage US6 SSM6L05FU +0.4/-0.2A/±20V N-ｃｈ+P-ｃｈ, 2in1 SM6 HN1B04F ±0.5A/±30V NPN+PNP, 2in1 USM 2SC4666 150mA/50V hFE=600 to 3600 Diode for Main Circuit SOP-8 Flasher IGBT Driver Portion Diode SMV Zener Diode LDO VS-6 DC/DC Conv. Trigger TSM

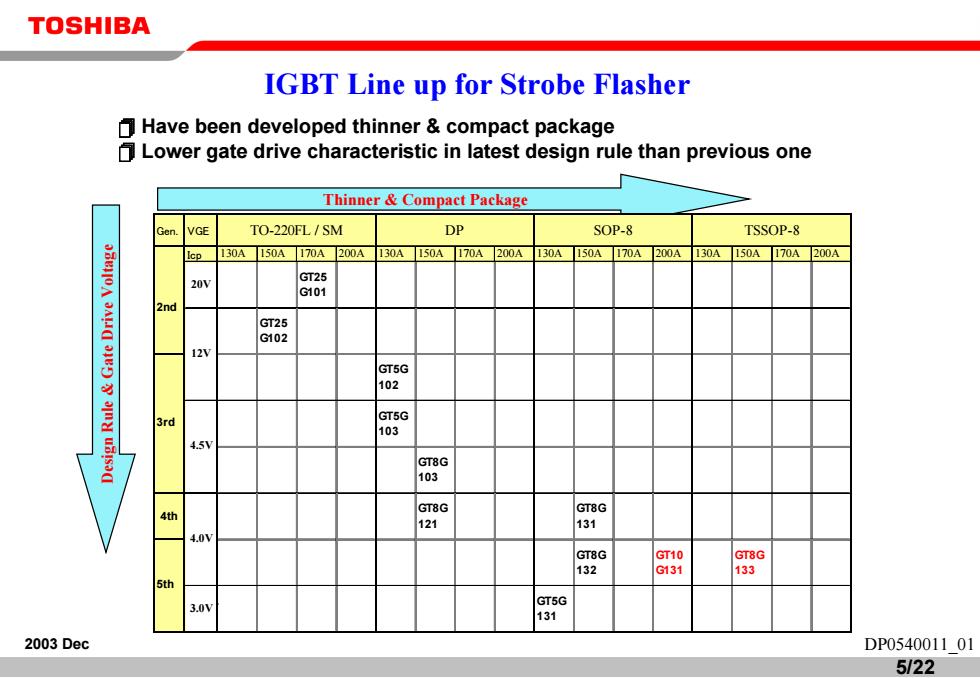

TOSHIBA IGBT Line up for Strobe Flasher Have been developed thinner compact package Lower gate drive characteristic in latest design rule than previous one Thinner Compact Package Gen VGE TO-220FL SM DP SOP-8 TSSOP-8 Icp 130A 150A 170A 200A130A150A170A200A 130A150A170A200A 130A 150A170A200A 20V GT25 G101 2nd GT25 G102 12V GT5G 102 3rd GT5G 103 4.5V GT8G 103 GT8G GT8G 4th 121 131 4.0V GT8G GT10 GT8G 132 G131 133 5th 3.0V GT5G 131 2003 Dec DP054001101 5/122
5/22 2003 Dec DP0540011_01 IGBT Line up for Strobe Flasher Have been developed thinner & compact package Lower gate drive characteristic in latest design rule than previous one Thinner & Compact Package Design Rule & Gate Drive VoltageIcp 130A 150A 170A 200A 130A 150A 170A 200A 130A 150A 170A 200A 130A 150A 170A 200A 20V GT25 G101 GT25 G102 GT5G 102 GT5G 103 GT8G 103 4th GT8G 121 GT8G 131 GT8G 132 GT10 G131 GT8G 133 3.0V GT5G 131 VGE TO-220FL / SM DP TSSOP-8 4.0V 5th SOP-8 2nd 12V 3rd 4.5V Gen
