10-1 Physical and Chemical Tests Chromatography CHAPTER 10 Using Nuclear Magnetic Resonance eggnoncompoune Spectroscopy to Determine Boing point er prop Structure rrothettme 10-2 Defining Spectroscopy ear Magnetic Resor e spectroscopy (NMR) uV) s spectroscopy (MS 10-2 Defining Spectroscopy Molecules undergo distinctive excitations. AE hv =天oA=c The The speed of light in a vacuum is 3 x 1019 cm s or 3 x 10 m s gsnmneanmdoeeea 1

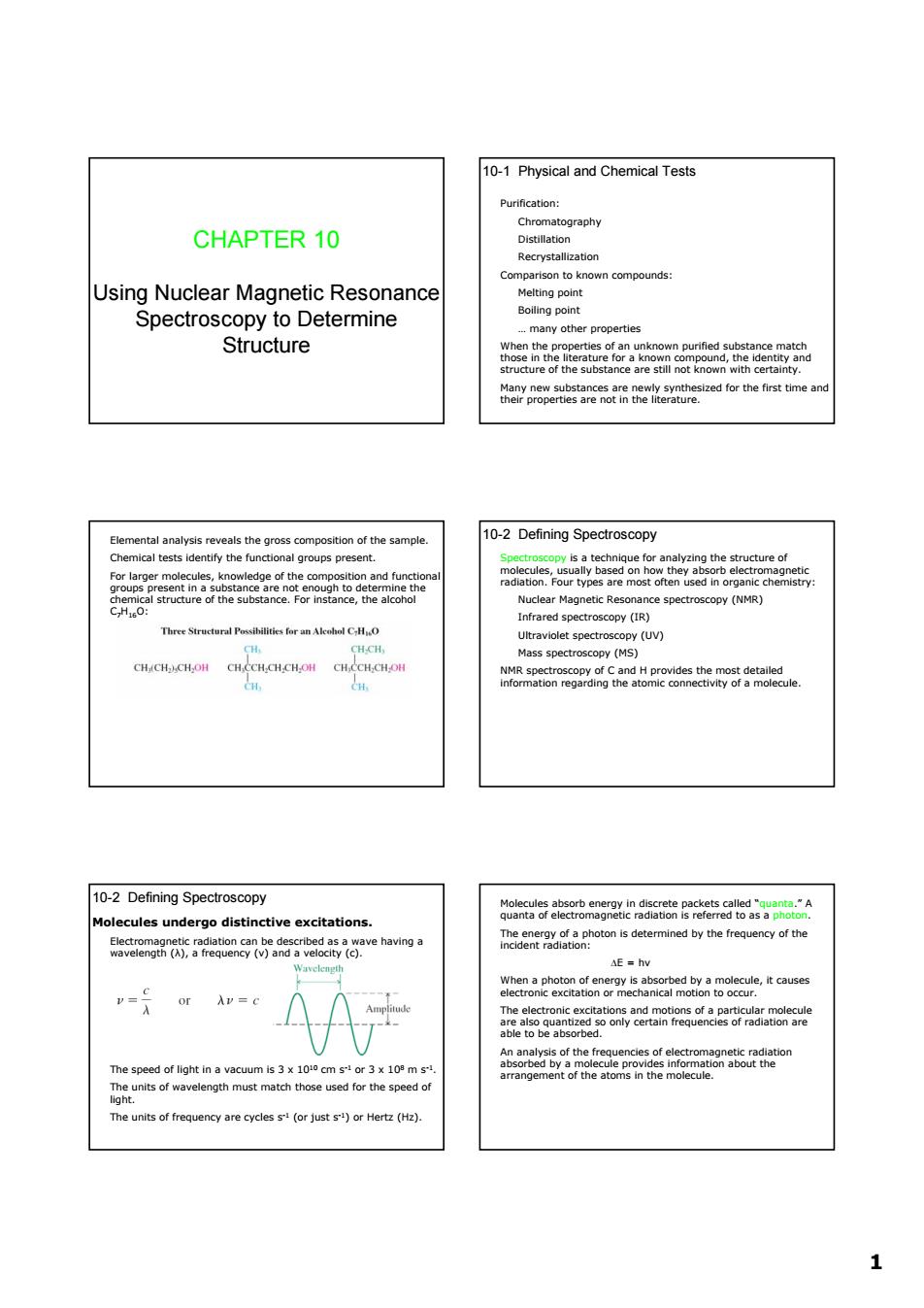

1 CHAPTER 10 Using Nuclear Magnetic Resonance Spectroscopy to Determine Structure 10-1 Physical and Chemical Tests Purification: Chromatography Distillation Recrystallization Comparison to known compounds: Melting point Boiling point … many other properties When the properties of an unknown purified substance match those in the literature for a known compound, the identity and structure of the substance are still not known with certainty. Many new substances are newly synthesized for the first time and their properties are not in the literature. Elemental analysis reveals the gross composition of the sample. Chemical tests identify the functional groups present. For larger molecules, knowledge of the composition and functional groups present in a substance are not enough to determine the chemical structure of the substance. For instance, the alcohol C7H16O: 10-2 Defining Spectroscopy Spectroscopy is a technique for analyzing the structure of molecules, usually based on how they absorb electromagnetic radiation. Four types are most often used in organic chemistry: Nuclear Magnetic Resonance spectroscopy (NMR) Infrared spectroscopy (IR) Ultraviolet spectroscopy (UV) Mass spectroscopy (MS) NMR spectroscopy of C and H provides the most detailed information regarding the atomic connectivity of a molecule. 10-2 Defining Spectroscopy Molecules undergo distinctive excitations. Electromagnetic radiation can be described as a wave having a wavelength (λ), a frequency (ν) and a velocity (c). The speed of light in a vacuum is 3 x 1010 cm s-1 or 3 x 108 m s-1. The units of wavelength must match those used for the speed of light. The units of frequency are cycles s-1 (or just s-1) or Hertz (Hz). Molecules absorb energy in discrete packets called “quanta.” A quanta of electromagnetic radiation is referred to as a photon. The energy of a photon is determined by the frequency of the incident radiation: ΔE = hν When a photon of energy is absorbed by a molecule, it causes electronic excitation or mechanical motion to occur. The electronic excitations and motions of a particular molecule are also quantized so only certain frequencies of radiation are able to be absorbed. An analysis of the frequencies of electromagnetic radiation absorbed by a molecule provides information about the arrangement of the atoms in the molecule
6e,e882oo a 2 to 10 kcal m M-t Microwave radiation excites bond rotations:~10-kcal mol- spectrometer records the absorption of radiation nhsdnoemtreaUenCYs5pecegnuneorwavemb us Wave Spectrometry (CW) Aaerapncaee2aRIByemaorptonof 二7阁3n cbXa8ole2tafasptningontheras,othe 然 ne the: and an exter 围男相 2

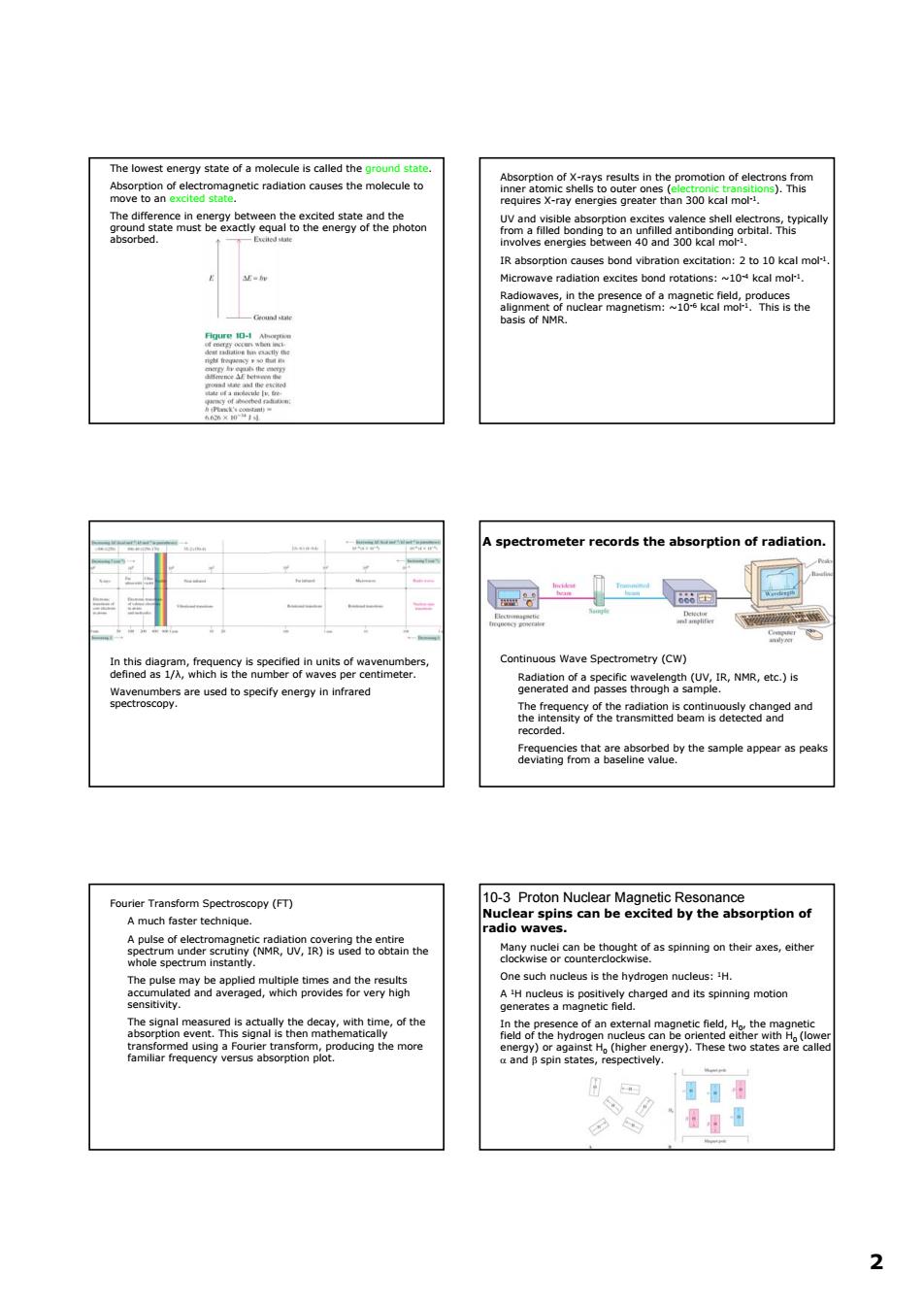

2 The lowest energy state of a molecule is called the ground state. Absorption of electromagnetic radiation causes the molecule to move to an excited state. The difference in energy between the excited state and the ground state must be exactly equal to the energy of the photon absorbed. Absorption of X-rays results in the promotion of electrons from inner atomic shells to outer ones (electronic transitions). This requires X-ray energies greater than 300 kcal mol-1. UV and visible absorption excites valence shell electrons, typically from a filled bonding to an unfilled antibonding orbital. This involves energies between 40 and 300 kcal mol-1. IR absorption causes bond vibration excitation: 2 to 10 kcal mol-1. Microwave radiation excites bond rotations: ~10-4 kcal mol-1. Radiowaves, in the presence of a magnetic field, produces alignment of nuclear magnetism: ~10-6 kcal mol-1. This is the basis of NMR. In this diagram, frequency is specified in units of wavenumbers, defined as 1/λ, which is the number of waves per centimeter. Wavenumbers are used to specify energy in infrared spectroscopy. A spectrometer records the absorption of radiation. Continuous Wave Spectrometry (CW) Radiation of a specific wavelength (UV, IR, NMR, etc.) is generated and passes through a sample. The frequency of the radiation is continuously changed and the intensity of the transmitted beam is detected and recorded. Frequencies that are absorbed by the sample appear as peaks deviating from a baseline value. Fourier Transform Spectroscopy (FT) A much faster technique. A pulse of electromagnetic radiation covering the entire spectrum under scrutiny (NMR, UV, IR) is used to obtain the whole spectrum instantly. The pulse may be applied multiple times and the results accumulated and averaged, which provides for very high sensitivity. The signal measured is actually the decay, with time, of the absorption event. This signal is then mathematically transformed using a Fourier transform, producing the more familiar frequency versus absorption plot. 10-3 Proton Nuclear Magnetic Resonance Nuclear spins can be excited by the absorption of radio waves. Many nuclei can be thought of as spinning on their axes, either clockwise or counterclockwise. One such nucleus is the hydrogen nucleus: 1H. A 1H nucleus is positively charged and its spinning motion generates a magnetic field. In the presence of an external magnetic field, H0, the magnetic field of the hydrogen nucleus can be oriented either with H0 (lower energy) or against H0 (higher energy). These two states are called α and β spin states, respectively
ImedteneexeegYteeetih,edgatedepenas Magsct pede 90 MH 88 ow出 用用兰兰用用 ernceoruh Many nuclei undergo magnetic resonance. ALNMR Activity and Nataral Abundance of Selected Nudei 8peacSna0,5o0-Gmgnat,h —AMH l28erreheneRpetoscopvcanterentate 10-4 Using NMR Spectra to Analyze Molecular hteNeReetouagCoCotZ250e6epr08n00 nRg24 3
3 The difference in energy between the α and β states depends directly on the external magnetic field strength, H0. 21,150 G 90 MHz 42,300 G 180 MHz 70,500 G 300 MHz The actual energy difference is small. At 300 MHz, the energy difference for a proton is about 3 x 10-5 kcal mol-1. Because the energy difference is so small and the equilibrium between the two states is so fast, the numbers of nuclei in the two states are nearly equal, however, a slight excess will be in the α state because of the external magnetic field. When electromagnetic radiation having the same energy as energy difference strikes the nucleus, the electromagnetic radiation is absorbed and the slight excess of nuclei in the α state is reduced. Many nuclei undergo magnetic resonance. In general, nuclei composed of an odd number of protons (1H and its isotopes, 14N 19F, and 31P) or an odd number of neutrons (13 C) show magnetic behavior. If both the proton and neutron counts are even (12C or 16O) the nuclei are non-magnetic. In a hypothetical scan of CH2ClF in a 70,500-G magnet, the following spectrum would be observed: High-resolution NMR spectroscopy can differentiate nuclei of the same element. In the NMR spectrum of ClCH2OCH3 at 70,500-G from 0 to 300 MHz, one peak would be observed for each element present. Using high-resolution NMR spectroscopy, the region around each of these peaks can be expanded and additional spectral details can be observed. Using NMR Spectra to Analyze Molecular Structure 10-4 The position of an NMR absorption of a nucleus is called its chemical shift. Chemical shifts depend upon the electron density around a nucleus and are thus controlled by the structural environment of the nucleus. The NMR chemical shifts provide important clues for determining the molecular structure of a chemical compound
The position of an NMR signal depends on the the atached atom esence of electron withdrawing/donating groups ate resonance hetedyeearfvsbegnheaniectoncenmvtroament depends 2尚 cH, ntof an NMR ak to the riht in CHCCH,OH ent to the left (shifted downfield CH shle) on the butyl oroup (mos One hydrogen on theH; wo equ chemical shift describes the position of an NMP ane, using For(is defined as0. 4
4 The position of an NMR signal depends on the electronic environment of the nucleus. In the high-resolution 1H NMR spectrum of chloro(methoxy)methane above, two separate resonance absorptions of hydrogen are observed. These absorptions reflect the differing electronic environments of the two types of hydrogen nuclei present. Electrons in the bonds connecting the hydrogen atoms to the molecule affect the NMR absorptions. Bound hydrogens are connected to a molecule by orbitals whose electron density varies: Bond polarity Hybridization of the attached atom Presence of electron withdrawing/donating groups The electrons in these orbitals are affected by the external magnetic field, H0, in such a way as to generate a small local magnetic field, hlocal, opposing H0. The total magnetic field seen by the hydrogen nucleus is the sum of these two fields and is thus reduced. The hydrogen nucleus is said to be shielded from H0 by its electron cloud. The degree of shielding of a nucleus depends upon its surrounding electron density. Adding electrons increases shielding. Removing electrons causes deshielding. Shielding causes a displacement of an NMR peak to the right in the spectrum (shifted upfield). Deshielding causes a displacement to the left (shifted downfield). Chemically equivalent hydrogens in a molecule all have identical electronic environments and therefore show NMR peaks at the same position. In the NMR spectrum of 2,2-dimethyl-a-propanol, there are three different peaks due to absorptions by: Nine equivalent methyl hydrogens on the butyl group (most shielded); One hydrogen on the OH; Two equivalent methylene hydrogens. The chemical shift describes the position of an NMR peak. Rather than reporting the exact frequency of each resonance in an NMR spectrum, we measure frequencies relative to an internal standard, tetramethylsilane, (CH3)4Si. To remove the effect of differing applied magnetic fields using different spectrophotomers, the frequencies relative to tetramethylsilane are divided by the frequency of the spectrometer. This yields the chemical shift (δ), a field-independent number measured in ppm. For (CH3)4Si, δ is defined as 0.00. The spectrum above would be reported as: 1H NMR (300 MHz, CDCl3) δ = 0.89, 1.80, 3.26 ppm
ise characteristic chemica I shi ce of c nithdraming groups d c w--- S48 10-5 Tests for Chemical Equivalence 10-5 Tests for Chemical Equivalence haeneral,chemkalyequnaentproto mmtry hep et chica 5
5 Functional groups cause characteristic chemical shifts. Each type of hydrogen in a molecule has a chemical shift which depends upon its chemical environment. The absorptions of alkane hydrogens occur at relatively high field. Hydrogens close to an electron withdrawing group (halogen or oxygen) are shifted to relatively lower field (deshielding). The more electronegative the atom, the more the deshielded methyl hydrogens are relative to methane. The deshielding influence of electron withdrawing groups diminishes rapidly with distance. Multiple substituents exert a cumulative effect. Hydroxy, mercapto, and amino hydrogens absorb over a range of frequencies. The absorption peak of the proton attached to the heteroatom may be relatively broad. This variability of chemical shift is due to hydrogen bonding and depends upon: Temperature; Concentration; Presence of H-bonding species such as water (moisture). When line broadening is observed, it usually indicates the presence of OH, SH, or NH2 (NHR) groups. 10-5 Tests for Chemical Equivalence In general, chemically equivalent protons have the same chemical shift. To identify chemically equivalent nuclei, we often have to resort to symmetry operations to decide on the expected NMR spectrum for a compound. 10-5 Tests for Chemical Equivalence Molecular symmetry helps establish chemical equivalence. Rotational symmetry results in equivalent protons when the group of protons is rapidly rotating, as in a methyl group
